Mining Equipment Case Study: Reducing Scaling in Industrial Furnace Cooling Systems with Closed-Circuit Cooling Towers
In heavy mining manufacturing, managing cooling water quality is just as critical as removing heat. Airborne dust and mineral buildup quickly foul open water circuits, degrading heat transfer and spiking maintenance costs.
When expanding their facility, a Malaysian mining equipment manufacturer upgraded to the Linkcooling SCT-60S closed-circuit cooling tower. Its sealed-loop design completely isolates process water from outside contaminants, protecting critical machinery and ensuring reliable uptime—backed from start to finish by Linkcooling's overseas technical support.
Project Overview
| Category | Details |
|---|---|
| Industry | Mining Equipment Manufacturing |
| Application | Heavy Metal Melting and Ultra-Large Mining Wear Parts Manufacturing |
| Location | Malaysia |
| Production Equipment | Medium-Frequency Induction Melting Furnaces, Heavy-Duty Heat Treatment Furnace Systems, Automated Molding and Sand Mixing Lines, Continuous Shot Blasting Machines |
| Original Cooling System | Open Cooling Tower |
| Upgraded Cooling System | Linkcooling SCT-60S Closed Circuit Cooling Tower |
| Implementation Strategy | Overseas Project |
Project Background
Operating an open tower for heavy industrial furnace cooling systems was creating a major headache for this Malaysian mining equipment manufacturer. Constant dust and airborne debris contaminated their cooling water, raising the risk of scale buildup inside critical machinery and driving up cooling tower cleaning and cooling tower water treatment costs.
To protect their production line—including high-heat induction furnace coil cooling passages—they upgraded to the Linkcooling SCT-60S closed-circuit cooling tower. By isolating the internal process loop from outside contaminants, the new system prevents mineral scaling, slashes maintenance demands, and delivers dependable, long-term furnace cooling.
Customer Challenges & Project Requirements
Maintaining Cooling Water Quality
As new equipment was added to the facility, the customer's cooling system requirements extended beyond heat dissipation alone. Cooling water quality became a key consideration due to its direct impact on long-term equipment performance and reliability. In industrial cooling systems, continuous exposure to dust, suspended particles, and mineral contaminants can increase the risk of cooling circuit fouling, reduce heat transfer efficiency, and create additional maintenance demands. The customer therefore sought a cooling solution capable of delivering both effective heat rejection and improved cooling water management.
Reducing Maintenance and Operational Burden
In addition to meeting cooling capacity requirements, the customer aimed to minimize the impact of external environmental contaminants on equipment cooling circuits. Water quality issues can lead to more frequent cleaning, maintenance, and system servicing, increasing long-term operational costs and management workload. As a result, equipment protection and maintenance accessibility became important evaluation criteria during the cooling system selection process. The customer sought a solution that could help simplify maintenance while supporting reliable long-term operation.
Overseas Project Implementation and Technical Support
With the facility located in Malaysia, equipment reliability went hand-in-hand with logistical support. The client needed a manufacturer capable of delivering container-friendly modular hardware, crystal-clear English technical documentation, straightforward installation blueprints, and dependable remote engineering guidance from system planning straight through commissioning.
Common Cooling Applications in Mining and Heavy Industry
In mining equipment manufacturing and heavy industrial environments, many high-heat-load systems require stable cooling circulation to maintain equipment reliability, process stability, and production efficiency. Closed circuit cooling towers are commonly used in the following applications：
Induction Heating Equipment
Cooling induction coils, power supplies, and associated electrical components to ensure stable operation and prevent overheating.
Chiller and HVAC Systems
Maintaining condenser heat rejection performance and supporting efficient operation of industrial cooling and air conditioning systems.
Large Air Compressor Systems
Cooling compressor units and heat exchangers to improve equipment reliability and maintain consistent operating performance.
Heat Treatment Equipment
Supporting cooling and heat exchange processes in heat treatment applications where precise temperature control is required.
Compared with open cooling systems, closed circuit cooling towers help reduce the risk of dust, metal particles, and other contaminants entering equipment cooling circuits. This makes them particularly suitable for industrial environments where cooling water quality, equipment protection, and long-term system reliability are critical considerations.
Why a Closed Circuit Cooling Tower?
Cooling Systems Require More Than Heat Rejection
In industrial cooling applications, cooling water does more than remove heat generated by equipment operation. The quality of circulating water can also have a significant impact on long-term system reliability, equipment performance, and maintenance requirements.
Traditional open cooling towers provide effective heat dissipation, but the circulating water is continuously exposed to the surrounding environment. As a result, dust, suspended particles, minerals, and other contaminants can enter the cooling system and accumulate over time. These contaminants may contribute to cooling circuit fouling, reduced water flow, and declining heat transfer efficiency, ultimately increasing maintenance demands and operating costs.
For industrial equipment that requires reliable long-term operation, cooling system design must consider not only heat rejection performance but also cooling water quality management. Maintaining clean circulating water is an important factor in protecting equipment and supporting stable system operation.
Closed-Loop Design Enhances Equipment Protection
A closed circuit cooling tower separates the process water loop from the external spray water circuit through a closed-loop heat exchange design.
Because the process water circulates within a sealed system, the risk of dust, suspended particles, and other contaminants entering equipment cooling circuits is significantly reduced. This helps maintain more consistent cooling water quality while protecting critical equipment components. Meanwhile, the external spray water circuit is responsible for heat rejection, allowing most cleaning and maintenance activities to be concentrated on the cooling tower side of the system.
Compared with conventional open cooling systems, closed circuit cooling towers provide improved protection for equipment cooling passages and simplify long-term maintenance management. As a result, they are widely used in applications such as induction heating equipment, air compressor systems, industrial chillers, and other high-value industrial processes where cooling water quality and equipment reliability are critical.
Meeting the Customer's Requirements for Equipment Protection and Maintenance Efficiency
When evaluating cooling system options, the customer sought a solution that could balance heat rejection performance, cooling water quality management, and long-term maintenance efficiency.
After a comprehensive assessment, the closed-loop design of the SCT-60S Closed Circuit Cooling Tower was found to align with the customer's key requirements for cooling water quality control and equipment protection. By separating the process water loop from the external spray water circuit, the system helps reduce the risk of contamination entering critical cooling passages while supporting more efficient maintenance management.
As a result, the customer selected a closed circuit cooling system as part of the facility's cooling infrastructure upgrade, providing a solution that supports both reliable equipment operation and long-term system maintenance objectives.
The Linkcooling Solution

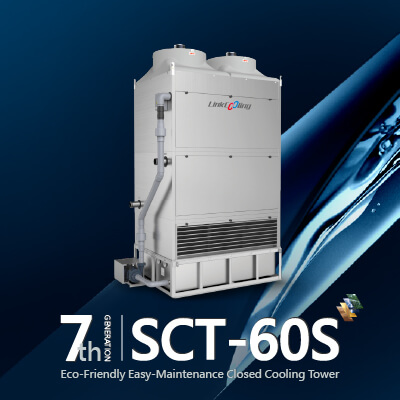

SCT-60S Closed Circuit Cooling Tower
Following a comprehensive cooling system evaluation, the customer selected the Linkcooling SCT-60S Closed Circuit Cooling Tower as a key component of the new cooling system installation.
The SCT-60S features a closed-loop cooling design that separates process water from the external spray water circuit through a heat exchange coil. This configuration provides effective heat rejection
while helping maintain cooling water quality within the equipment cooling loop. By reducing the risk of dust, suspended particles, and other contaminants entering the system, the SCT-60S supports improved equipment protection and more stable long-term cooling performance.
Maintaining Cooling Water Quality Through a Closed-Loop Design
To address the customer's requirements for equipment protection and cooling water management, the SCT-60S utilizes a closed-loop cooling design that separates the process water circuit from the external spray water circuit. This configuration allows process water to circulate within a protected environment, reducing the risk of external contaminants entering equipment cooling passages.
Compared with conventional open cooling systems, the closed-loop design helps minimize cooling circuit fouling, maintain heat transfer performance, and reduce maintenance requirements. As a result, the system supports improved cooling water quality and contributes to long-term operational reliability.
Modular Design for Flexible Installation and Future Expansion
The SCT-60S features a modular design that can be configured according to different heat loads and system requirements. The system also supports parallel operation of multiple units, providing flexibility for future production expansion and increased cooling demand.
To simplify overseas project implementation, major assembly and performance testing are completed before shipment. The unit can be disassembled for transportation and reassembled on-site, helping reduce installation complexity and improve deployment efficiency for international projects.
Balancing Cooling Performance and Maintenance Efficiency
To help reduce long-term maintenance demands, the SCT-60S incorporates removable and washable ABS fill media that can be cleaned and reused when buildup occurs. Key components, including the spray system, water basin, drift eliminators, and external coil surfaces, are designed for convenient inspection and cleaning.
By concentrating routine maintenance activities on the external cooling tower circuit, the system helps improve serviceability, reduce maintenance time, and minimize the risk of equipment downtime, while continuing to deliver reliable cooling performance.
Overseas Technical Support
Technical Support from Equipment Selection to System Integration
For overseas projects, equipment performance is only one part of a successful implementation. The ability to support transportation, installation, and system integration is equally important when evaluating a cooling system supplier.
For this project in Malaysia, Linkcooling provided cooling system selection guidance during the planning stage, helping the customer evaluate heat load requirements, installation conditions, and electrical specifications before equipment deployment. These recommendations served as an important reference for the overall cooling system design and project planning process.
By offering technical support from the early evaluation stage through system implementation, Linkcooling helped ensure that the selected cooling solution aligned with the customer's operational requirements and project objectives.
Comprehensive English Technical Documentation
To support equipment installation, operation, and long-term maintenance for overseas customers, Linkcooling provides a complete set of English technical documentation, including：
● Equipment selection recommendations
● Wiring diagrams and English operation manuals
● Factory acceptance test reports
● Equipment dimension drawings
● Piping layout and engineering support
● Recommended spare parts planning
● Remote technical consultation
With access to comprehensive technical documentation and engineering resources, overseas customers can efficiently complete equipment installation, system commissioning, operation, and maintenance planning, even when on-site support is limited.
Modular Design for Efficient Overseas Installation
The SCT Series features a modular design that allows major assembly and performance testing to be completed before shipment. Depending on transportation requirements, the units can be partially disassembled for export and reassembled at the installation site.
For this project, the SCT-60S was shipped in modular sections suitable for container transportation. Upon arrival, the equipment was reassembled and connected according to the installation guidelines provided by Linkcooling. This approach helped simplify on-site construction, reduce installation complexity, and shorten overall project implementation time for the overseas deployment.
Key Technical Support Highlights
In this project, Linkcooling provided more than just a closed circuit cooling tower. Through comprehensive technical documentation, modular equipment design, and experience supporting international projects, Linkcooling assisted the customer throughout cooling system planning, equipment installation, and system integration.
By combining engineering support with practical overseas project experience, Linkcooling helped reduce uncertainties associated with transportation, installation, commissioning, and long-term maintenance, enabling a smoother and more efficient project implementation process.
Project Results
This project demonstrates the value of closed circuit cooling towers in mining equipment manufacturing and heavy industrial applications. In addition to providing reliable cooling performance, the solution helps improve equipment protection, support cooling water quality management, and simplify long-term maintenance activities.
By implementing the Linkcooling SCT-60S Closed Circuit Cooling Tower, the customer established a cooling system that aligns with operational requirements while supporting long-term system reliability and maintenance efficiency.
Establishing a Stable Closed-Loop Cooling System
With the implementation of the Linkcooling SCT-60S Closed Circuit Cooling Tower, the customer successfully established a closed-loop cooling system designed to meet the cooling requirements of its production equipment.
The system's separation of the process water loop from the external spray water circuit helps maintain cooling water quality while reducing the risk of dust, suspended particles, and other contaminants entering critical equipment cooling passages.
Compared with a conventional open cooling system, the closed-loop configuration provides enhanced equipment protection and supports long-term cooling water management. This approach aligns with the customer's objectives for reliable equipment operation and overall cooling system dependability.
Improving Maintenance Efficiency
The SCT-60S features a maintenance-friendly external circulation design that concentrates routine cleaning and servicing activities on the cooling tower side of the system. Key components, including the spray system, water basin, filters, and fill media, are designed for convenient inspection and cleaning, helping improve day-to-day maintenance efficiency.
By isolating the process water circuit from the external environment, the system also helps reduce the risk of contamination entering equipment cooling passages. This contributes to lower maintenance requirements, simplifies system management, and supports more reliable long-term operation.
Successful Overseas Project Implementation
Beyond the cooling equipment itself, the project was supported by comprehensive English technical documentation, cooling system selection guidance, and remote technical assistance, helping the customer successfully complete both cooling system planning and equipment deployment.
In addition, the SCT-60S's modular design and container-friendly transportation configuration enabled efficient international shipping and on-site installation. These features helped streamline equipment integration and improve project implementation efficiency, meeting the practical requirements of an overseas industrial installation.
A Reliable Cooling Solution for Mining and Heavy Industrial Applications
This project highlights the practical benefits of closed circuit cooling towers in mining equipment manufacturing and heavy industrial environments. In addition to providing reliable cooling performance, closed-loop cooling systems can help support cooling water quality management, enhance equipment protection, and improve maintenance efficiency.
For companies that prioritize cooling water quality, equipment reliability, and long-term maintenance management, a closed circuit cooling tower can be an effective option when planning or upgrading industrial cooling systems.
Project Highlights
- Stable closed-loop cooling system implementation
- Improved cooling water quality management
- Reduced contamination risk in equipment cooling circuits
- Enhanced maintenance efficiency
- Successful overseas project deployment in Malaysia
- Comprehensive technical documentation and remote support
Frequently Asked Questions (FAQ)
Q1. What Is the Difference Between a Closed Circuit Cooling Tower and an Open Cooling Tower?
The primary difference lies in whether the process water is directly exposed to the external environment.
In an open cooling tower, the circulating water comes into direct contact with ambient air, making it more susceptible to dust, suspended particles, minerals, and other contaminants. Over time, these impurities can enter equipment cooling circuits and affect cooling water quality.
A closed circuit cooling tower, on the other hand, uses a heat exchange coil to separate the process water loop from the external spray water circuit. This closed-loop configuration helps reduce the risk of contamination entering equipment cooling passages while supporting more stable cooling water quality and improved equipment protection.
Q2. Why Are Closed Circuit Cooling Towers Commonly Used with Induction Heating Equipment?
Induction heating equipment typically relies on stable cooling circulation and consistent water quality to protect critical components such as power supplies, induction coils, and associated cooling circuits.
When contaminants, scale, or suspended particles accumulate in the cooling water, heat transfer efficiency may decline, potentially increasing maintenance requirements and affecting system performance. Maintaining clean cooling water is therefore an important consideration in induction heating applications.
Because a closed circuit cooling tower separates the process water loop from the external environment, it helps reduce the risk of contaminants entering equipment cooling circuits. For this reason, closed-loop cooling systems are commonly used for induction heating equipment and other high-value industrial applications where equipment protection and cooling water quality are important priorities.
Q3. What Maintenance Issues Can a Closed Circuit Cooling Tower Help Reduce?
By separating the process water loop from the external spray water circuit, a closed circuit cooling tower helps reduce the risk of dust, metal particles, minerals, and other contaminants entering equipment cooling passages.
This can help minimize issues such as cooling circuit fouling, reduced heat transfer efficiency, water contamination, and increased equipment cleaning requirements. Maintaining cleaner cooling water can also contribute to more stable system performance over the long term.
In addition, most routine cleaning and maintenance activities are concentrated on the cooling tower's external circulation side. This design helps reduce maintenance demands on connected equipment while improving overall system management efficiency.
Q4. Why Is Cooling Water Quality Especially Important in Mining and Heavy Industrial Applications?
Mining equipment manufacturing and heavy industrial environments are often characterized by high levels of dust, metal particles, and demanding high-temperature processes.
When cooling water becomes contaminated over time, it can increase the risk of cooling circuit fouling, reduced heat transfer efficiency, and more frequent maintenance requirements. These issues may affect both equipment performance and long-term operational reliability.
As a result, many companies operating high-value industrial equipment prioritize cooling water quality when planning their cooling systems. Closed circuit cooling towers are often considered because they help protect equipment cooling circuits while maintaining effective cooling performance.
Q5. How Does Linkcooling Support Overseas Project Implementation?
For international projects, Linkcooling provides technical support throughout the equipment selection and implementation process, including cooling system selection guidance, piping layout recommendations, and electrical specification verification.
To assist overseas customers with installation and long-term operation, Linkcooling also supplies comprehensive English technical documentation, including operation manuals, piping drawings, equipment dimension drawings, and recommended spare parts lists.
In addition, the SCT Series features a modular design that allows major assembly and performance testing to be completed before shipment. Depending on transportation requirements, the equipment can be disassembled for export and reassembled on-site, helping customers streamline installation, system integration, and project implementation in overseas markets.
Q6. What Industrial Applications Is the SCT-60S Suitable For?
The Linkcooling SCT-60S Closed Circuit Cooling Tower is designed for a wide range of industrial cooling applications, including induction heating equipment, plastic injection molding machines, industrial chillers, air compressor systems, and other equipment that requires a stable cooling water circulation system.
Its closed-loop cooling design helps maintain cooling water quality while protecting critical equipment cooling circuits from external contaminants. As a result, the SCT-60S is particularly well suited for industrial environments where equipment protection, cooling system reliability, and maintenance efficiency are important considerations.
About the Linkcooling SCT-60S
The Linkcooling SCT-60S is a closed circuit cooling tower designed for industrial process cooling and equipment integration applications. It is suitable for a wide range of industrial equipment, including induction heating systems, plastic injection molding machines, industrial chillers, air compressor systems, and other applications that require stable and reliable cooling water circulation.
The SCT-60S utilizes a closed-loop cooling design that separates the process water circuit from the external spray water circuit. This configuration helps maintain cooling water quality while reducing the risk of dust, suspended particles, and other contaminants entering critical equipment cooling passages. As a result, the system is particularly well suited for industrial environments where cooling water stability and equipment protection are important considerations.
To simplify maintenance, the SCT-60S incorporates removable and washable ABS fill media that can be cleaned and reused when buildup occurs. Key components, including the spray system, water basin, filters, and external coil surfaces, are designed for convenient inspection and cleaning, helping reduce maintenance complexity and improve service efficiency.
In addition, the SCT-60S features a modular design that supports flexible system configuration and future expansion based on different process requirements. Available options include a #304 stainless steel casing, high-efficiency heat exchange coils, and low-speed 8-pole fan motors, providing a balanced solution that combines cooling performance, equipment reliability, and maintenance convenience.
Learn More About the Linkcooling SCT-60S
Key Features
- Closed-loop heat exchange design for improved cooling water protection.
- Flexible modular configuration for diverse industrial applications.
- Supports multi-unit parallel operation for scalable cooling capacity.
- Low-speed 8-pole fan motors for efficient cooling and reduced operating noise.
- Ideal for OEM integration, process cooling, and industrial equipment applications.
Advantages for Overseas Projects and Equipment Integration
Premium Construction Design
The SCT-60S features a high-grade #304 stainless steel casing designed for demanding industrial environments. The system can be configured with motors and low-speed 8-pole fan systems that meet applicable electrical requirements, making it suitable as a standard auxiliary cooling solution for industrial chillers, large air compressor systems, medium-frequency induction heating equipment, and other industrial applications worldwide.
Modular Assembly Design
Major assembly and performance testing are completed before shipment, and the unit is designed with a modular structure to facilitate transportation and installation. For international projects, this approach helps reduce on-site installation complexity and supports more efficient equipment deployment and system integration.
Global Market Compatibility
To accommodate different regional requirements, the SCT-60S can be configured with selected motors and electrical components that comply with CE or UL standards, subject to project specifications. This flexibility helps OEMs and system integrators incorporate the cooling system into existing control systems and production equipment while supporting equipment integration across global markets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cooling Capacity |
180,000 kcal/h (209 kW) (Based on 38°C entering water, 33°C leaving water, 27°C ambient wet-bulb temperature) |
| Heat Exchange Coil | #304 stainless steel coil |
| Water Flow | 500 L/min（SCT-60S） |
| Inlet/Outlet Water Pipe | 3" |
| Spray Pump | 2 HP |
|
Water Supply Pipe (Rapid Supply) |
¾ " |
| Fan Motor | 3Φ/8P/0.75×2 kW×pcs |
| Fan Blade | 28"×2 inch×pcs |
| Fan Air Volume | 11,500 m³/hr × 2 |
| Net Weight | 950 kg |
| Dimensions(L×W×H) | 2120×1450×3320 mm |
| Casing Material | Fully Detachable SUS 304 Stainless Steel |
| Fill Media | Reusable Impact-Resistant ABS Fill |
| System Design | Supports Parallel Operation with Multiple Units and Models |
| Electrical Compliance Options | Optional CE-Compliant Motor and Electrical Components |
Specification Note: For international projects, the 304 stainless steel coil is recommended to enhance long-term reliability during overseas transportation, accommodate varying site water conditions, and support lower maintenance requirements throughout the service life.

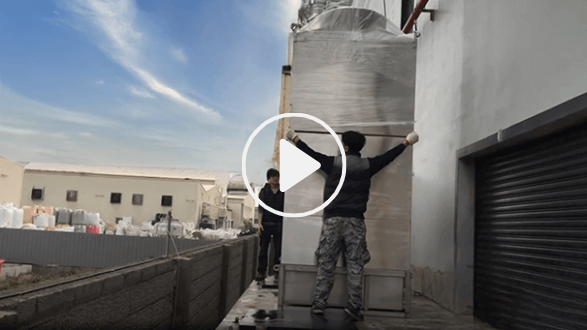

Watch the Linkcooling SCT-60S Closed Circuit Cooling Tower Video
Easy Installation and Transportation
The SCT-60S is designed with a compact equipment footprint that optimizes container loading efficiency. Its dimensions are suitable for standard 20-foot and 40-foot shipping containers, helping reduce transportation volume and international shipping costs.
For overseas projects, the unit can be shipped in upper and lower modular sections. After delivery, the sections can be assembled on-site according to the provided installation guidelines, simplifying logistics while supporting efficient installation and system integration.
Supporting Industrial Cooling Systems Worldwide
Cooling system requirements vary across industries, equipment types, and production processes. Whether applied to induction heating equipment, industrial chillers, air compressor systems, plastic injection molding machines, or other high-value industrial equipment, cooling system reliability and cooling water quality can have a direct impact on operational performance and long-term maintenance requirements.
Linkcooling specializes in the design and manufacture of closed circuit cooling towers. Based on equipment heat loads, installation conditions, and site-specific requirements, our engineering team provides cooling system selection guidance, system planning recommendations, and technical support to help customers develop reliable and efficient industrial cooling solutions.
To learn more about the SCT Series Closed Circuit Cooling Towers or discuss your cooling system requirements, please contact Linkcooling for technical consultation and project support.
